TATA
4-POST
CAR LIFT
HomeTATA 4-Post Car Lift

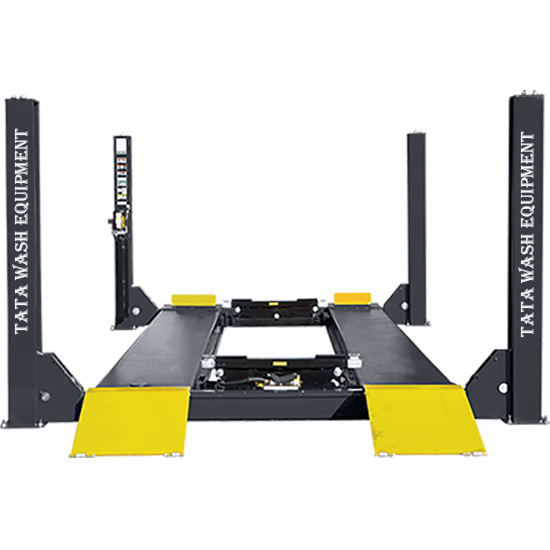

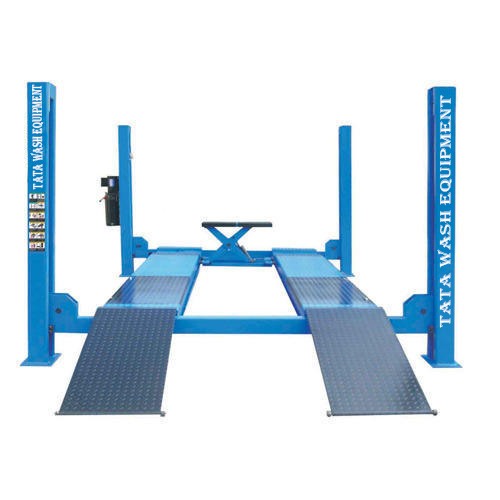

Tata Wash Equipment - 4-Post Car Lift
CONTACT US TO KNOW MORE
We hold immense expertise in catering to the variegated requirements of the customers by
bringing forth a remarkable range of Four Post Alignment Lift. The products we are offering
are developed and made under the supervision of our experts by trusted vendors as per the
client’s requirements.
| Usage/Application | Car Servicing |
| Number of Guide Posts | 4 Post |
| Body Material | Mild Steel |
| Brand | TATA WASH EQUIPMENT |
| Locking System | Automatic Lock |
| Runway Length | 4300 mm |
| Lifting Capacity | 3500 Kg |
| Lifting Height | 215 mm |
| Overall Length (do not include slope) | 4300 mm |
| Overall Length (included slope) | 5230 mm |
| Width between columns | 2828 mm |
| Runway width | 508 mm |
| Within the runway distance | 1050mm |
| Central jack raised height | 350 mm |
| Motor Power | 3.5 kW |
| Power supply | 220 V |
- Adopt hydraulic cylinder drive, rope drive, quiet and smooth lifting
- Adopt mechanical linkage with manual locks, four-point locking system
- Runway spacing is adjustable for different wheel base vehicles
- Telescopic sliding beam and telescopic arm design, screw-up pad, horizontal pad and short-sleeved pad optional.
- Hydraulic power unit configuration throttling device, the car always adjusts the rate of decline
- Easy to operate and can be locked in desired height of operations, safety and reliability
- With the second lift pulley
- Manual locked release from one side, more convenient to use
- With wire control security lock set with a wire rope fracture protection, operational safety
- Central jack included
